Drilling depth（m）:180-1000
The hole diameter（mm）:140-520
The penetration efficiency（m/h）:10-35
Hoisting force of winch （T）:1-5
Accept OEM/ODM Order

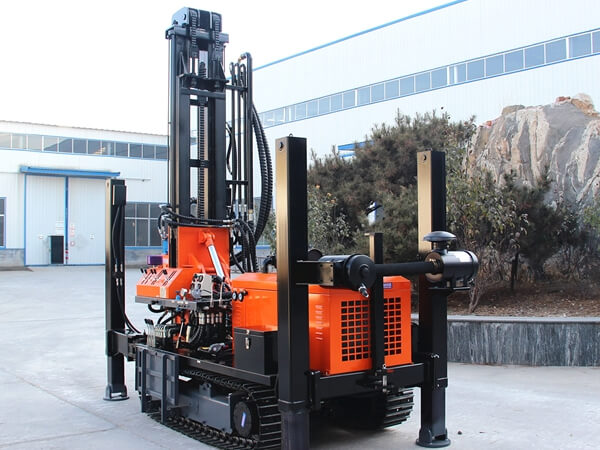

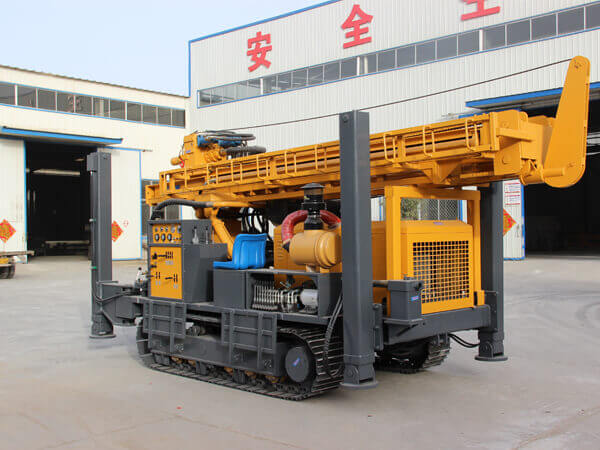

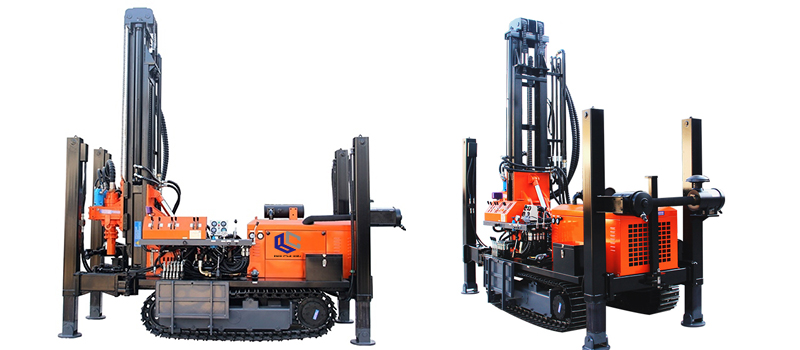

BC crawler water well drilling rig is a drilling industrial equipment suitable for a variety of engineering needs, especially for industrial and agricultural water conservancy projects, geological exploration, foundation reinforcement, loose gravel terrain with pipe drilling, foundation drilling, etc. It can drill rock water wells, test wells and other exploration wells, especially in the drilling of geothermal heating holes.
Advantages of BC Crawler Water Well Drilling Rigs:
1. Good mobility and terrain adaptability: The crawler chassis design enables the drilling rig to have good off-road performance and passability, and can walk stably in rugged sites and adapt to various complex terrains, such as mountains, hills, swamps, etc.;
2. Versatility: The crawler water well drilling rig can replace different power heads according to different construction needs, and is suitable for various operations such as drilling wells, coring, and soil extraction;
3. Adapt to various construction needs: This equipment is not only suitable for drilling civil drinking wells and irrigation wells, but also for ground source heat pump air Construction of well adjustment, water reduction wells, small foundation piles and acoustic detection pipes;
4. Efficient drilling capability: crawler water well drilling rigs are usually equipped with high-performance engines, which can drill efficiently in various terrains, reduce drilling time and improve work efficiency;
5. Time-saving and labor-saving operation: the drilling rig adopts an automatic telescopic drilling tower and a hydraulic valve to control the drilling tower to lie on its back, which is simple to operate, time-saving and labor-saving, safe and reliable;
6. Reduce noise and fuel consumption: the chassis adopts rubber crawler tracks, which are light in weight and have low life cycle costs. It can reduce the noise of the vehicle's walking mechanism, reduce the vibration of the vehicle body, and significantly reduce fuel consumption.
BC crawler water well drilling rig | |||
The weight（T） | 12 | Drill pipe diameter（mm） | Φ102 Φ108 Φ114 |
The hole diameter（mm） | 140-520 | Drill pipe length（m） | 1.5m 2.0m 3.0m 6.0m |
Drilling depth（m） | 180-1000 | Rig lifting force（T） | 28 |
One-time advance length（m） | 6.6 | Rapid rise speed（m/min） | 20 |
Walking speed（km/h） | 2.5 | Fast feeding speed（m/min） | 40 |
Climbing angles（Max.） | 30 | Width of loading（m） | 2.95 |
Equipped capacitor（kw） | 132 | Hoisting force of winch（T） | 1-5 |
Using air pressure（MPA） | 1.7-3.5 | Swing torque（N.m） | 8500-11000 |
Air consumption（m³/min） | 17-42 | Dimension（mm） | 6200×2200×2950 |
Swing speed（rpm） | 45-140 | Equipped with hammer | Medium and high wind pressure series |
The penetration efficiency（m/h） | 10-35 | High leg stroke（m） | 1.7 |
The engine brand | Cummins engine | ||
